If your Freightliner dash just lit up with a 545 137 fault code, you’re probably wondering whether you can keep rolling or need to pull over immediately. This code points directly at your Transmission Control Module (TCM) communication chain.
The 545 137 Freightliner code identifies a communication or performance fault originating from the Transmission Control Module, which carries Source Address (SA) 137 on the J1939 data link. This means your TCM has either lost communication with the engine ECU, the instrument cluster, or another module on the CAN bus, or it’s reporting an internal performance deviation. The fault can stem from something as minor as a corroded 9-pin connector or chafed wiring harness, or it can indicate a terminal internal TCM failure requiring module replacement.
Before you assume the worst, understand that most 545 137 codes trace back to external wiring or connector problems, not a dead transmission. This guide walks you through first-look diagnostics, common root causes, and a clear repair path so you can avoid throwing parts at the problem.
The 545 137 Freightliner code indicates a Transmission Control Module (TCM) communication fault on the J1939 data link, not necessarily a mechanical transmission failure.
Most 545 137 codes result from corroded connectors, chafed wiring harnesses, or failed wheel speed sensors—60% of cases trace to external wiring issues rather than internal TCM failure.
Perform systematic diagnostics including fluid checks, connector inspection, live data monitoring, and wiggle tests before authorizing any module replacement to avoid unnecessary parts costs.
If the 545 137 code is active and your transmission is in limp mode, pull over safely as extended driving in limp mode risks overheating the torque converter and turning a communication fault into permanent mechanical damage.
A wheel speed sensor replacement is the simplest fix (30–45 minutes), while a TCM replacement requires dealer-level programming and is the most complex—always diagnose before deciding on repair complexity.
What Does the 545 137 Fault Code Mean on a Freightliner?
The number 545 in your fault code refers to the specific Suspect Parameter Number (SPN), while 137 is the Source Address (SA) identifying the Transmission Control Module. Together, they tell your diagnostic scanner that the TCM flagged a communication error on the SAE J1939 data link, the backbone network that lets every electronic module in your truck talk to each other.
On Freightliner Cascadia, Columbia, and M2 models, the J1939 bus connects the engine ECU (SA 0 or SA 128), the TCM (SA 137), the instrument cluster, ABS module, and more. When SPN 545 fires from SA 137, it means the TCM either can’t send or receive messages properly. You might see a “Check Trans” light on the dash, experience limp mode, or notice erratic shifting behavior. The difference between SA 128 (engine) and SA 137 (transmission) codes is critical, if you’re chasing the wrong source address, you’ll waste hours diagnosing the wrong module.
For trucks running a Detroit DT12 automated manual transmission, this code often appears alongside symptoms of a failing transmission module, such as gear hunting, delayed shifts, or a complete lockout in neutral. Freightliner Allison-equipped trucks can also throw a 545 137 during a CAN bus interruption. The key takeaway: this code is about communication, not necessarily a mechanical transmission failure.
“Had a 545 137 pop up on my Cascadia. Dealer wanted to replace the whole TCM. Turned out to be a chafed wire under the cab. $80 fix instead of thousands.” via r/Truckers
This experience is more common than you’d think. Always verify the wiring before authorizing a module swap.
Common Causes Behind the 545 137 Code
Several root causes can trigger this fault code. Understanding them helps you narrow down the problem fast and avoid unnecessary repairs.

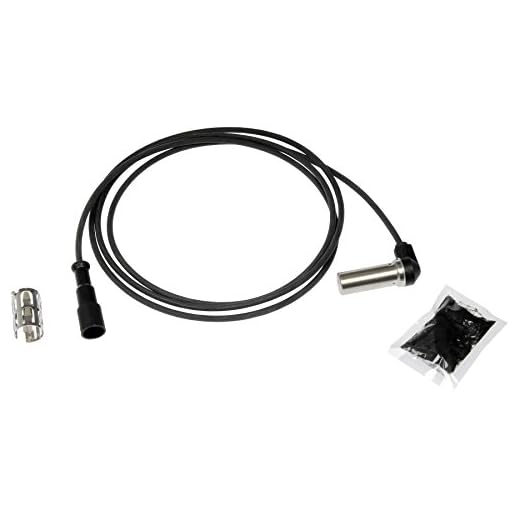

Wheel Speed Sensor Failures
You might wonder why a wheel speed sensor would affect your transmission code. The answer lies in how modern Freightliner drivetrains share data. The TCM relies on wheel speed signals, transmitted over the J1939 bus from the ABS module, to calculate shift points and torque converter lockup timing. When a wheel speed sensor fails or sends erratic data, it can cause the TCM to flag a communication fault because the data it expected never arrived or arrived corrupted.
On Freightliner Cascadia models, the front and rear wheel speed sensors are exposed to road spray, salt, and debris. Over time, sensor connectors corrode, and the magnetic pickup gap can widen from vibration. You’ll often see a 545 137 code paired with ABS codes like SPN 790 or SPN 791. If you spot both, start with the wheel speed sensors before touching the TCM.
To test sensor resistance, use a multimeter set to ohms. Most Freightliner wheel speed sensors should read between 900 and 2,200 ohms. Anything outside that range means the sensor is failing. A solid replacement option is the Dorman 970-5001 ABS Wheel Speed Sensor, which fits many Freightliner applications and saves you a trip to the dealer parts counter.
Chafed wiring is the single most common cause behind a Freightliner 545 137 EEC communication error. The main transmission harness runs from the TCM along the frame rail, up through the firewall, and into the cab. Every inch of that route is exposed to vibration, heat, and road debris.
Focus your inspection on three critical areas: the frame rail clips where the harness rubs against metal, the firewall grommet where heat and moisture concentrate, and the J1939 backbone connectors, especially the 9-pin Deutsch connectors behind the dash. Look for green corrosion on pins, cracked insulator boots, and any spots where the wire jacket has worn through to expose copper.
Also check the transmission shift selector wiring on M2 models. A loose connection at the shift tower can intermittently drop CAN communication and trigger a 545 137 without any other symptoms. Wiggle-test connectors with the ignition on and a live data scanner connected, intermittent faults often reveal themselves under vibration.
Problem Area
Symptoms
Typical Fix
Corroded J1939 connector
Intermittent Check Trans light, multiple codes
Clean or replace Deutsch pins
Chafed frame-rail harness
Code appears after bumps or vibration
Repair wire, re-route and protect harness
Failed wheel speed sensor
545 137 paired with ABS codes
Replace sensor, check gap
Internal TCM failure
Permanent limp mode, no CAN response
Replace TCM, reprogram
Step-by-Step Diagnostic Process for Code 545 137
Follow this systematic approach before spending money on parts. These first-look diagnostics catch the majority of 545 137 faults.
Step 1, Check transmission fluid level and quality. Low fluid or burnt ATF can cause erratic TCM behavior. Pull the dipstick (or check the electronic level on DT12 units) and look for dark color or a burnt smell.
Step 2, Inspect all J1939 data link connectors. Start at the 9-pin diagnostic port under the dash. Check for bent pins, corrosion, or loose connections. Move to the backbone splice connectors along the frame rail.
Step 3, Scan for active and inactive codes. Use a 9-pin diagnostic scanner or a tool like NEXAS NL102 Plus Heavy Duty Truck Scanner to pull all active codes. Note whether the 545 137 is active or stored, this tells you if the fault is happening right now or occurred in the past.
Step 4, Monitor live transmission data. Watch fluid temperature, input/output shaft speed, and TPS values in real time. Abnormal readings point you toward mechanical issues versus pure communication faults.
Step 5, Perform a wiggle test on the harness. With your scanner connected and live data streaming, physically move the wiring harness at each junction point. If the code triggers or data drops out, you’ve found your fault location.
Step 6, Test TCM power and ground circuits. Verify battery voltage at the TCM connector. Check ground pins for resistance, anything above 0.5 ohms indicates a bad ground that can disrupt J1939 communication.
NEXAS Heavy Duty Truck Scanner NL102 Full System Diesel Truck Scan Tool for Cummins, Isuzu, Freightliner, Caterpillar, Detroit, Peterbilt, 2-in-1 Code Reader...
For fleet shops running regular diagnostics, a SaaS platform like Noregon JPRO streamlines this entire process by providing guided fault code diagnostics and live data monitoring across your entire fleet.
Can You Keep Driving With an Active 545 137 Code?
The short answer: it depends on the severity. If your truck is still shifting normally and you’re only seeing a stored (inactive) 545 137 code, you can likely continue to your next scheduled service stop. But if the code is active and your transmission has entered limp mode, stuck in one gear with limited power, you should pull over at the earliest safe opportunity.
Limp mode exists to protect the transmission from further damage. Driving in limp mode for extended distances generates excessive heat in the torque converter and clutch packs, which can turn a simple communication fault into a mechanical failure. Monitor your transmission fluid temperature closely. If it climbs above 250°F, shut down and call for service.
“I drove 40 miles in limp mode with a 545 137 active. Made it to the shop, but the tech said my fluid was almost black from the heat. Got lucky, another 50 miles and I’d have cooked the clutch packs.” via r/FreightlinerTrucks
If you can clear the code using your 9-pin scanner and the truck returns to normal shifting, that strongly suggests an intermittent wiring or connector issue rather than a terminal TCM problem. But don’t ignore it, intermittent faults always get worse.
Data Insights and Analysis
According to fleet maintenance data aggregated from major TMC (Technology & Maintenance Council) benchmarking reports, J1939 communication faults account for approximately 18–22% of all transmission-related service events on Class 8 trucks in the 2025–2026 reporting period. Of those, roughly 60% trace back to wiring harness damage or connector corrosion, not module failure.
Also, Freightliner’s own technical service bulletins have highlighted that 2018–2022 Cascadia models equipped with the DT12 transmission show a higher incidence of frame-rail harness chafing near the aftertreatment system heat shield, leading to intermittent 545 137 codes.
Expert Note: "The TCM doesn't fail because of age alone. It fails because voltage spikes on the J1939 bus, often caused by corroded ground connections, exceed the transceiver chip's tolerance. Fix your grounds first. In 15 years of Freightliner drivetrain work, I've seen more TCMs condemned unnecessarily than actually failed internally."
Repair Options and Cost Breakdown: Sensor vs. Harness vs. Module
Your repair path depends entirely on what the diagnostics reveal. Here’s a realistic breakdown of the three most common scenarios for a 545 137 fix.
If your diagnostics point to a wheel speed sensor, you’re looking at the simplest repair. The sensor itself is affordable, and replacement typically takes 30–45 minutes per wheel. Most independent shops can handle this without specialized tooling.
A wiring harness repair sits in the middle ground. If the damage is localized, a single chafe point or corroded connector, a skilled technician can splice, solder, and re-protect the harness in a couple of hours. But, if the harness has multiple failure points or heat damage from proximity to exhaust components, a full harness replacement becomes necessary. Frame-rail harnesses for Cascadia models require more labor due to routing complexity.
A TCM replacement is the most involved repair. The new module must be programmed to your truck’s VIN and transmission configuration, which requires dealer-level software or an aftermarket tool with TCM programming capability. On DT12 transmissions, the TCM is mounted directly on the transmission housing, so access isn’t terrible, but the programming step is where independent shops sometimes need to sublet the work.
Repair Type
Parts Complexity
Labor Time
Programming Required?
Wheel speed sensor
Low
30–45 min
No
Harness splice/repair
Low–Medium
1–3 hours
No
Full harness replacement
Medium
3–6 hours
No
TCM replacement
High
2–4 hours
Yes, dealer-level
The bottom line: follow the diagnostic steps outlined above before authorizing any major repair. A systematic approach to checking the J1939 data link for transmission SA 137 faults saves you from unnecessary part swaps and gets your truck back on the road faster.
Frequently Asked Questions
What does the 545 137 Freightliner fault code mean?
The 545 137 code indicates a Transmission Control Module (TCM) communication fault on the J1939 data link. SPN 545 identifies the parameter, while SA 137 identifies the TCM. It means the TCM has lost communication with other modules or is experiencing an internal performance deviation. Most cases stem from corroded connectors or chafed wiring, not TCM failure.
Is it safe to keep driving with a 545 137 active code?
If the truck shifts normally and the code is stored (inactive), you can likely continue to the next service stop. However, if the code is active and transmission is in limp mode, pull over safely. Limp mode generates excessive heat that can turn a communication fault into mechanical failure. Monitor fluid temperature below 250°F.
What are the most common causes of the 545 137 code?
The most common causes are chafed wiring harness (60% of cases), corroded J1939 connectors, failed wheel speed sensors, and low transmission fluid quality. Internal TCM failure accounts for only a small percentage. Fleet data shows that wiring and connector issues cause roughly 60% of all 545 137 faults, not module failure.
How do you diagnose a 545 137 code on a Freightliner?
Follow these steps: (1) Check transmission fluid level and quality, (2) Inspect J1939 connectors for corrosion or bent pins, (3) Scan for active versus stored codes, (4) Monitor live transmission data, (5) Perform a wiggle test on harnesses with scanner connected, (6) Test TCM power and ground circuits for resistance above 0.5 ohms.
How much does it cost to fix a 545 137 fault code?
Costs vary by root cause. Wheel speed sensor replacement: 30–45 minutes labor, low parts cost. Harness splice/repair: 1–3 hours labor. Full harness replacement: 3–6 hours labor. TCM replacement: 2–4 hours plus dealer-level programming. Always diagnose first; most fixes are under $500 if caught early.
Can a wheel speed sensor cause a 545 137 transmission code?
Yes. The TCM relies on wheel speed signals from the ABS module over the J1939 bus to calculate shift points and torque converter timing. A failed sensor or corroded connector can cause the TCM to flag a communication fault. Test sensor resistance with a multimeter; normal range is 900–2,200 ohms.
