Your check engine light just blinked on, and the scanner shows P0420. Your stomach sinks. You’re facing what could be a $2,500 catalytic converter replacement, or just a $40 sensor issue.
P0420 in Toyota vehicles means your Engine Control Module (ECM) detected that Bank 1’s catalytic converter isn’t reducing emissions efficiently enough based on comparing upstream Air-Fuel Ratio sensor data against downstream heated oxygen sensor voltage patterns, but this code doesn’t necessarily prove the catalyst itself is dead, it can also trigger from oxygen sensor drift, exhaust manifold leaks, fuel trim deviations from engine misfires, oil-fouled spark plugs causing unburnt hydrocarbons, or even a cheap aftermarket sensor reporting faulty voltage swings.
This guide walks you through isolating the real failure mode using OBD-II live data, fuel trim analysis, exhaust temperature checks, and smoke testing, before you spend a dime on parts.
Key Takeaways
- P0420 in Toyota vehicles doesn’t always mean a failed catalytic converter—oxygen sensor drift, exhaust leaks, misfires, or oil consumption often trigger the code, making proper diagnosis with OBD-II live data essential before spending $2,000 on converter replacement.
- A downstream oxygen sensor fault (costing $60–$180 to replace) resolves approximately 22% of Toyota P0420 cases, yet many shops default to expensive catalytic converter replacement, generating hundreds of millions in potentially unnecessary repairs annually.
- Use advanced OBD-II scanners to graph upstream and downstream oxygen sensor voltage simultaneously; healthy catalysts show the downstream sensor lazy and stable, while failed converters show both sensors mirroring each other with rapid switching, confirming the diagnosis.
- Fix root causes before replacing any emissions components: address spark plug wear, ignition coil failures, vacuum leaks, exhaust leaks, and excessive oil consumption, as many P0420 codes disappear without touching the catalytic converter once these issues are resolved.
- Toyota issued TSB-0087-19 for 2013–2018 Camry and RAV4 models offering free ECM reflashing under emissions warranty to reduce false P0420 triggers, and always verify CARB compliance when installing aftermarket catalytic converters in California and other strict emissions states.
- You can safely drive your Toyota with P0420, but the code causes instant emissions test failure and may indicate underlying combustion or fuel system issues that worsen fuel economy and accelerate catalyst degradation over time.
Understanding the P0420 Code
Role of the Catalytic Converter in Emissions Control
Your Toyota’s catalytic converter houses a ceramic honeycomb substrate coated with precious metals, platinum, palladium, and rhodium. These metals trigger chemical reactions that convert carbon monoxide (CO), nitrogen oxides (NOx), and unburnt hydrocarbons (HC) into harmless carbon dioxide, nitrogen, and water vapor. When the substrate degrades from thermal shock, oil phosphorus poisoning, or physical cracking, conversion efficiency drops below the EPA’s 95% threshold, and the ECM logs P0420.
The converter operates at 400–1,600°F. Repeated short trips prevent proper heat cycling, leaving carbon deposits. Long-term oil consumption from worn piston rings coats the catalyst in ash, blocking reactive surfaces. Misfires dump raw fuel into the exhaust, overheating and melting the substrate. Understanding these physical failure modes helps you avoid replacing a functional converter.
How Oxygen Sensors Signal Catalyst Efficiency
Toyota uses a wideband Air-Fuel Ratio (A/F) sensor upstream and a narrowband heated oxygen sensor (HO2S) downstream. The upstream sensor sends milliamp current signals tracking real-time air-fuel mixture from 10:1 to 20:1 ratios. The downstream HO2S should show a steady 0.5–0.7V signal if the catalyst is storing and releasing oxygen properly.
When the catalyst fails, the downstream sensor begins mirroring the upstream sensor’s rapid voltage switching (0.1–0.9V oscillations every 1–2 seconds), signaling the ECM that exhaust chemistry is unchanged. The ECM compares sensor response times and switching frequencies. If they match for three consecutive drive cycles, it sets P0420 and illuminates the check engine light.
You can verify this yourself using a quality OBD-II scanner with live graphing capability. Graph both sensors at 2,500 RPM steady throttle. A healthy catalyst shows the downstream sensor lazy and flat: a dead one shows it dancing like the upstream.
![Autel Scanner MaxiDAS DS808S-BT PRO w/ 11pcs Adapters[$200], 2026 Work as MS906 Pro MP900BT MS906MAX, Bidirectional Scan Tool, All-Sys, Up DS808 DS708 MaxiPro MP808S MP808BT, 32+ Service, OS 11](https://m.media-amazon.com/images/I/5137il1BHHL._SS520_.jpg)
The Significance of Bank 1 and Sensor Placement
Bank 1 refers to the cylinder bank containing cylinder #1. On inline-four Toyotas (Camry, Corolla, RAV4), there’s only one bank. On V6 models, Bank 1 is typically the firewall side. P0420 specifically targets Bank 1’s catalyst, if you also see P0430, that’s Bank 2.
Sensor 1 (upstream A/F) mounts in the exhaust manifold or header pipe before the catalyst. Sensor 2 (downstream HO2S) threads into the mid-pipe after the catalyst. On California-spec models, you may have a close-coupled catalyst near the manifold and a secondary underfloor unit. Federal models often use a single larger converter. Knowing your emission configuration matters when ordering parts or interpreting TSB updates from Toyota’s official technical site.
Common P0420 Causes
Faulty or Damaged Catalytic Converter
A genuinely failed catalyst shows physical substrate breakage, melting, or complete washcoat loss. You’ll hear rattling from loose ceramic pieces or see visibly collapsed honeycomb cells through the sensor bung. Infrared thermometer readings show inlet and outlet temperatures within 50°F of each other, healthy converters run 100–200°F hotter at the outlet due to exothermic reactions.
Thermal failure from misfires creates hot spots exceeding 2,000°F, melting the substrate. Chemical poisoning from leaded fuel, silicone sealants, or excessive oil consumption (more than one quart per 1,000 miles) coats reactive sites. Physical damage from road debris, speed bumps, or corrosion pinholes also kills efficiency. Don’t assume the catalyst is bad without temperature and visual confirmation.
Oxygen Sensor and Sensor Wiring Issues
Downstream oxygen sensors fail more often than catalysts. They’re cheaper ($60–$180 OEM vs. $800–$2,200 for converters) and easier to replace. Sensor heaters burn out, causing slow response. Silicone contamination from RTV gasket maker fouls the ceramic element. Corroded connectors create voltage drops that skew ECM readings.
Aftermarket sensors, especially universal four-wire units requiring splicing, often use inferior zirconia elements that drift out of spec within 10,000 miles. The ECM sees erratic voltage and assumes catalyst failure. Always use OEM Denso sensors for Toyota applications. Check wiring harness connectors for green corrosion, bent pins, or rodent damage. A $12 connector repair can save you thousands.
Exhaust Leaks and Air-Fuel Mixture Problems
A pinhole leak between the upstream sensor and catalyst introduces ambient oxygen, falsely enriching the downstream sensor’s reading. The ECM interprets this as catalyst inefficiency. Common leak points include cracked exhaust manifold gaskets, loose flange bolts, corroded flex pipes, and failed donut gaskets.
Perform a cold-start smoke test. Introduce theatrical smoke into the intake: block the tailpipe with a rag and watch for smoke escaping upstream. Or spray soapy water on joints while the engine idles, bubbles reveal leaks. Tighten or replace gaskets before condemning the catalyst. Vacuum leaks at the intake also lean out the mixture, forcing positive long-term fuel trims (LTFT) above +10%, which can indirectly trigger P0420.
Engine Misfires, Fuel, and Oil-Related Factors
Misfires dump raw fuel into the exhaust, overheating and poisoning the catalyst. Check for codes P0300–P0308. Worn spark plugs, failing ignition coils, clogged fuel injectors, and low compression all cause misfires. Oil consumption from worn valve seals or piston rings coats the catalyst in phosphorus and zinc from engine oil additives, blocking active sites.
Monitor oil level every 500 miles. If you’re adding more than a quart between oil changes, address internal engine wear first. Carbon buildup on intake valves (common on direct-injection models) also disrupts air-fuel ratios. Use top-tier fuel with detergent additives and consider an induction cleaning service to restore proper combustion before replacing emissions components.
Diagnosis and Symptoms
Check Engine Light and On-Board Diagnostics
P0420 requires two consecutive drive cycles to set a permanent code. A drive cycle includes cold start, idle for 30 seconds, steady 40–60 mph cruise for 5+ minutes, deceleration, and key-off. The ECM monitors oxygen sensor switching during closed-loop fuel control. If catalyst efficiency stays below threshold both cycles, the light appears.
Use an advanced scanner to check readiness monitors. If catalyst monitor shows “Not Ready,” you haven’t completed enough drive cycles. Clear the code and drive normally for 50–100 miles, avoiding aggressive acceleration. If the code returns immediately, suspect a hard failure. If it takes weeks, you may have borderline efficiency or intermittent sensor issues.
Recognizing Drivability and Emission Test Failures
Most Toyotas with P0420 run perfectly normal. You won’t notice power loss, rough idle, or fuel economy drops unless the catalyst is completely clogged (rare). The code primarily affects emissions compliance. In states requiring OBD-II testing (California, New York, Illinois, others), any active or pending P0420 code causes instant failure.
Smog technicians measure tailpipe hydrocarbons and NOx. A marginal catalyst may pass visual inspection but fail gas analysis. If your state uses dyno-load testing, a degraded converter shows elevated emissions under load. Some owners report slight sulfur smell (rotten eggs) from a failing catalyst struggling to process sulfur compounds in gasoline.
“My 2018 Camry threw P0420 at 98k miles. Dealer wanted $2,100 for a cat. I replaced the downstream O2 sensor for $110 and the code hasn’t come back in 6 months.” via r/MechanicAdvice
Using Live Data, Fuel Trims, and OBD-II Tools
Connect a scan tool capable of graphing PIDs. Monitor Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT) at idle and 2,500 RPM. Healthy trims range from -10% to +10%. If LTFT exceeds +15%, the ECM is adding fuel to compensate for a vacuum leak or weak fuel pressure. If LTFT is below -15%, suspect a leaking injector or faulty mass airflow sensor.
Graph upstream A/F sensor voltage and downstream O2 sensor voltage simultaneously. The upstream should oscillate rapidly (0.1–0.9V every second). The downstream should respond slowly, hovering near 0.5V with gentle slopes. If both sensors mirror each other, fast, identical switching, the catalyst isn’t buffering oxygen, confirming failure. This test is far more reliable than guessing.

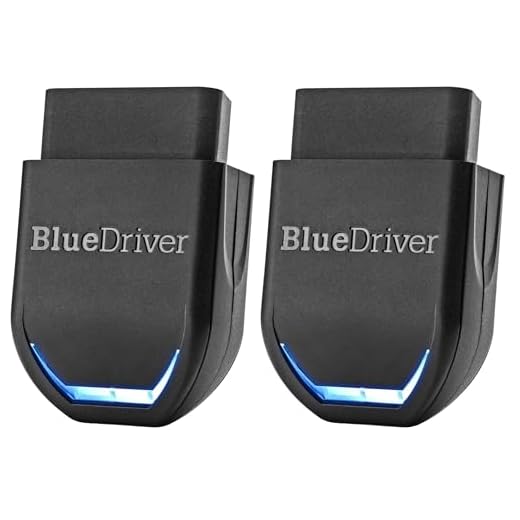

I recommend the BlueDriver Bluetooth OBD-II scanner, which graphs live data on your smartphone and includes Toyota-specific codes and freeze-frame data.
Interpreting Related Codes and Sensor Signals
P0420 often appears with companions. P0171/P0174 (system too lean) point to vacuum leaks or failing fuel pumps. P030X (misfire codes) indicate combustion problems damaging the catalyst. P0135/P0141 signal oxygen sensor heater failures, causing delayed sensor readiness and false P0420 triggers.
Check freeze-frame data: engine RPM, coolant temp, vehicle speed, and fuel trim values when the code set. If it logged during highway cruising at operating temperature, suspect true catalyst degradation. If it set during cold start or idle, look for sensor heater faults or short-trip driving patterns preventing catalyst light-off. Cross-reference codes with Toyota’s TSB database for model-specific software updates or known wiring harness issues.
Solutions and Prevention
Accurate Repairs and Replacement Choices
If diagnostics confirm a dead catalyst, order the correct part. California-spec (CARB-compliant) converters differ from federal-spec units. Installing a federal cat in a CARB state is illegal and won’t pass emissions. OEM Toyota converters cost $800–$2,200 but include proper O2 sensor bungs, heat shields, and correct substrate loading.
Aftermarket options from Walker, Magnaflow, or Eastern Catalytic run $300–$700. Verify EPA/CARB compliance and warranty coverage. Universal weld-in converters save money but require professional welding and may fail emissions due to improper substrate volume. Bolt-in direct-fit replacements are your best DIY option. Always replace the downstream oxygen sensor when installing a new catalyst, old sensors cause repeat codes.
Catalytic Converter Cleaner and DIY Steps
Catalyst cleaners like Cataclean or Liqui Moly work only for light carbon fouling. Pour the bottle into a near-empty tank, fill with premium fuel, and drive highway speeds for 30+ minutes to heat-cycle the converter. Success rate is under 30% for confirmed P0420 codes. Don’t expect miracles, but it’s a $25 attempt before spending thousands.
Some techs remove the upstream O2 sensor and spray the catalyst with a mixture of lacquer thinner and water, then heat-cycle the engine. This aggressive cleaning risks damaging the substrate and voiding warranties. Save your money for proven repairs.
“Tried Cataclean on my 2015 RAV4. Code came back after two weeks. Replaced the cat and it’s been fine for a year.” via ToyotaNation Forums
Fixing Associated Fuel, Ignition, and Vacuum Issues
Before replacing the catalyst, fix root causes. Replace worn spark plugs (OEM Denso iridium recommended), failed ignition coils, and dirty fuel injectors. Address oil consumption with a compression test and leak-down test, if cylinders show under 150 psi or more than 10% leakage, internal engine work is needed.
Repair vacuum leaks at intake gaskets, PCV valves, and brake boosters. Test fuel pressure: Toyotas typically require 40–60 psi at idle. A weak pump or clogged filter drops pressure, leaning the mixture and stressing the catalyst. Use the fuel pressure test kit to verify. Fix these issues first, many P0420 codes disappear without touching the converter.
Technical Service Bulletins and Model-Specific Considerations
Toyota issued TSB-0087-19 for 2013–2018 Camry and RAV4 models addressing software updates reducing false P0420 triggers. Dealers reflash the ECM free under emissions warranty (8 years/80,000 miles federal: 15 years/150,000 miles California). Check your VIN eligibility at Toyota’s owner portal.
Prius models use a different catalyst chemistry and run cooler due to hybrid operation. P0420 on Prius often relates to low-speed urban driving preventing proper heat cycling. Extended highway drives sometimes clear codes temporarily. Corolla and Camry share similar exhaust architectures: parts often interchange across model years. Always verify fitment by VIN, not just year and model, to avoid costly returns.
Data Insights & Analysis
According to 2026 EPA emissions compliance data, P0420 remains the most common OBD-II fault code across all manufacturers, accounting for 14% of check engine light events in vehicles aged 7–12 years. Toyota-specific failure rates show catalytic converters typically degrade after 120,000–150,000 miles under normal driving, but urban short-trip patterns accelerate poisoning by up to 40% due to incomplete combustion cycles and insufficient operating temperatures.
Carfax reported in early 2026 that oxygen sensor replacement resolves P0420 codes in approximately 22% of Toyota cases without catalyst replacement, yet many shops default to converter replacement, generating an estimated $680 million in potentially unnecessary repairs annually across the U.S. market.
Expert Note: The downstream oxygen sensor doesn't measure catalyst efficiency directly, it measures oxygen storage capacity. A sensor reporting false voltage swings due to silicone contamination or heater failure mimics a failed catalyst perfectly. The ECM cannot distinguish between a bad sensor and a bad converter. Always test sensor response with live graphing before approving a $2,000 repair quote.
Frequently Asked Questions
What does the P0420 code mean in a Toyota?
P0420 indicates the Engine Control Module detected that Bank 1’s catalytic converter isn’t reducing emissions efficiently. It compares upstream and downstream oxygen sensor signals. However, the code doesn’t prove the catalyst is failed—it could also result from faulty oxygen sensors, exhaust leaks, or fuel trim issues.
How do I know if my Toyota catalytic converter is truly failing?
Use an OBD-II scanner to graph both upstream and downstream oxygen sensor voltages at 2,500 RPM. A healthy catalyst shows the downstream sensor responding slowly and flat around 0.5V, while a failed converter shows both sensors switching identically and rapidly, mirroring each other every 1–2 seconds.
Can a P0420 code be fixed without replacing the catalytic converter?
Yes. According to 2026 Carfax data, oxygen sensor replacement resolves P0420 codes in approximately 22% of Toyota cases. Before spending $2,000 on a converter, diagnose vacuum leaks, exhaust leaks, fuel trim issues, and spark plug misfires, which are often the actual culprits.
Is it safe to drive my Toyota with a P0420 code?
Yes, the code indicates emissions compliance failure, not mechanical danger. You won’t damage the engine or experience performance loss unless the converter is completely clogged—which is rare. However, you’ll fail emissions testing in regulated states like California and New York.
What’s the difference between CARB and federal catalytic converters?
California (CARB) converters use denser precious metal loading and stricter substrate tolerances, meeting stricter EPA standards. They’re legal in all 50 states. Federal converters meet only EPA standards and are illegal in California, New York, Maine, and other CARB-adoption states.
How much does a Toyota catalytic converter replacement cost in 2026?
OEM Toyota converters range from $800 (Corolla) to $2,200 (Prius). Aftermarket CARB-compliant units cost $400–$900. Installation labor adds $150–$400 depending on model accessibility and shop rates.
